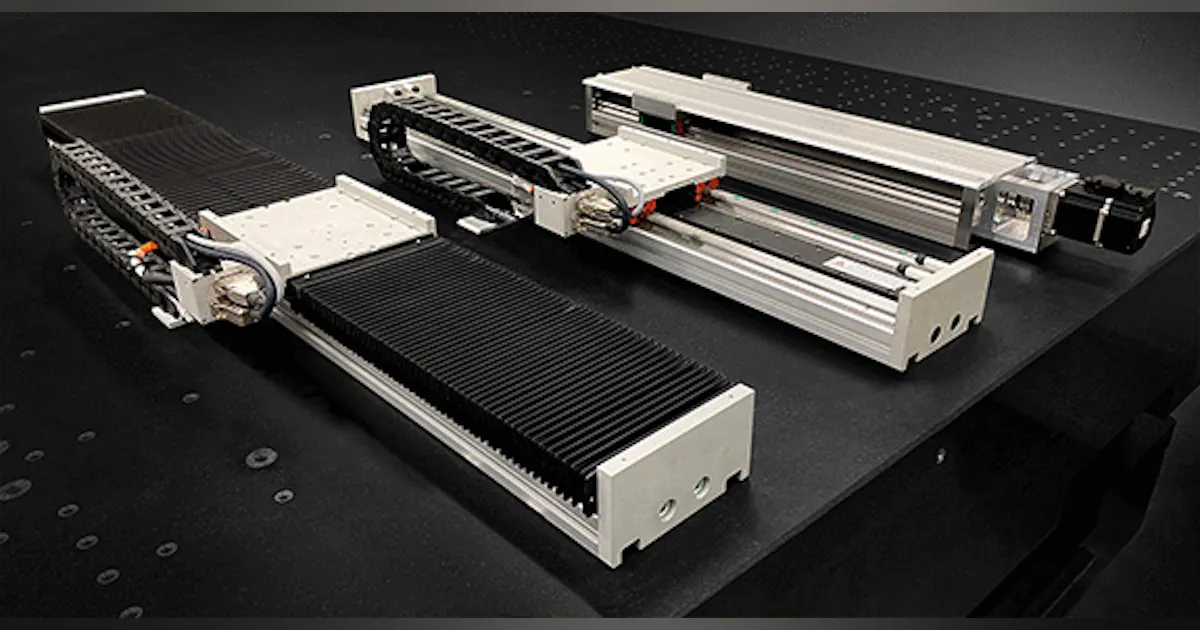

Power Transmission and Linear Motion Components: How Motors and More Can Benefit Production

Manufacturing is built on the foundation of motors and power generation. Motors are required for running all the operations of production- from powering tools to driving pumps and turning fans to running conveyer belts. To convert the generated power into usable work, power transmission is indispensable. Rotary power is converted into linear motion by the very same motors that generate the rotary motion and power transmission drives. This establishes the fact that without motors manufacturing would be impossible to carry out as motors are the workhouses behind most tools and processes involved in production.

The Basic Design Principles of Linear Motion

The rotary engines can output linear motion at the point where the motor meets a shaft. With only a few components working together, this energy conversion can be obtained.

A threaded shaft is spun with the help of a rotary motor. The threads of the shaft are connected to a nut which doesn’t revolve despite the shaft’s rotations. In fact the nut is driven along the shaft with the help of the rotary’s movement. A linear motion can be created by coupling the nut to a sliding tube or other aperture.

The Acme Lead Screw

The lead crew operates in a different way from the threaded shaft. The difference is that instead of moving along the shaft, the nut rotates along with the running motor. This system is simple but not efficient. A lot of heat and friction are produced in this setup and affect the efficiency of the power transmission. The rate of conversion ranges between 20% to 70%, yet it is still popular because of simplicity of design, ease in manufacturing and low cost.

A More Complex Example – The Ball Screw

To avoid the friction and make the process more efficient, the same power transmission to the linear motion effect is achieved by the ball screw by utilizing the ball bearings. A spiral ‘raceway’ is created by the threaded shaft for the ball bearings to travel. These moving balls are utilized in such a way that friction is reduced to the minimum and nearly 90% efficiency can be achieved. The only downside to this setup is that for effective operation especially clean threads which are debris and obstructions free are required.

This kind of configuration gives a powerful tool for precision manufacturing equipment, machining, and in computer numerical control manufacturing systems. Despite being more expensive and complicated by design, ball screws provide increased efficiency and can help save costs as they require a less powerful motor. The shaft and ball system can be kept clean and obstruction free by adding a protecting bellows made from rubber or even leather.

Bearings and Linear Motion

The bearing comes in two main configurations- plane and rolling element.
The rolling element consists of row of balls in cages in an outer sleeve or ring. To achieve smooth and precise operations, the moving parts glide over the ball bearings. This is often used in appliances, precision instrumentation, robotic assemblies, and even in cabinetry. Instead of balls, rollers are also used as a variation to get the same results but with larger surface of contact to handle heavier loads.
In the case of plane bearings, a bearing surface is used instead of a rolling device similar to a shaft rotating in a plain sleeve. These are not as precise but can handle heavy loads distributed over a large surface at a lower cost.

Overall, linear motion can be achieved from a rotary motor with the right power transmission and couplings.

Rainbow Precision Products is your one-stop shop for Goodyear power transmission and material handling equipment with ball bearings, conveyer belts and pulleys- all available online.
